Deploying a Juju Cluster on Brightbox Cloud

Canonical

on 24 August 2015

Tags: Juju

Juju is described as a state-of-the-art, open source, universal model for service oriented architecture and service oriented deployments.

It takes the configuration scripts written in other tools and wraps them into a charm which can be deployed either with the Juju CLI tool or its GUI interface.

And it’s really easy to run up a cluster to play with on Brightbox Cloud.

Install

In the Brightbox Platforms repository on GitHub there is a juju directory that will build a Juju cluster automatically.

So once you have the Brightbox CLI installed and SSH working, then clone the repository.

git clone https://github.com/brightbox/brightbox-platforms.git

Change into the Juju directory

cd juju

and run the cluster build script

./build-cluster
This will build a Juju management station running the GUI and a single 4gb SSD server to be managed by by it.

Building Juju cluster from trusty base image img-548oh
Juju Cluster #1 security group id is grp-ytzon
Building Juju Cluster #1 Management Jumpstation
Creating a 512mb.ssd (typ-1j3zh) server with image ubuntu-trusty-14.04-amd64-server (img-548oh) in groups grp-ytzon with 0.82k of user data

id status type zone creat... image_id cloud... name
-------------------------------------------------------------------------------
srv-z0iwb creating 512mb.ssd gb1-a 2015-... img-5... Juju ...
-------------------------------------------------------------------------------

Waiting for server srv-z0iwb to complete build.......
Mapping cip-h9v3l to interface int-nxdiz on srv-z0iwb

id status public_ip destination reverse_dns name
-------------------------------------------------------------------------------
cip-h9v3l mapped 109.107.35.57 srv-z0iwb cip-109-107-35-57.gb1...
-------------------------------------------------------------------------------

id status public_ip destination reverse_dns name
-------------------------------------------------------------------------------
cip-h9v3l mapped 109.107.35.57 srv-z0iwb cip-109-107... Juju Cluste...
-------------------------------------------------------------------------------

Waiting for ssh logon for ubuntu@cip-h9v3l.gb1.brightbox.com.........
Bootstrapping Juju GUI
Bootstrapping environment "manual"
Starting new instance for initial state server
Installing Juju agent on bootstrap instance
Logging to /var/log/cloud-init-output.log on remote host
Running apt-get update
Installing package: curl
Installing package: cpu-checker
Installing package: bridge-utils
Installing package: rsyslog-gnutls
Installing package: cloud-utils
Installing package: cloud-image-utils
Fetching tools: curl -sSfw 'tools from %{url_effective} downloaded: HTTP %{http_code}; time %{time_total}s; size %{size_download} bytes; speed %{speed_download} bytes/s ' --retry 10 -o $bin/tools.tar.gz <[https://streams.canonical.com/juju/tools/releases/juju-1.22.6-trusty-amd64.tgz]>
Bootstrapping Juju machine agent
Starting Juju machine agent (jujud-machine-0)
Bootstrap complete
Added charm "cs:trusty/juju-gui-38" to the environment.
Building cluster service machines
Creating a 4gb.ssd (typ-sdipw) server with image ubuntu-trusty-14.04-amd64-server (img-548oh) in groups grp-ytzon with 0.00k of user data

id status type zone creat... image_id cloud... name
-------------------------------------------------------------------------------
srv-y3z8f creating 4gb.ssd gb1-a 2015-... img-548oh Juju C...
-------------------------------------------------------------------------------

Waiting for server srv-z0iwb to complete build
Waiting for server srv-y3z8f to complete build........
Adding machines to cluster...
srv-y3z8f
Waiting for ssh logon for ubuntu@cip-h9v3l.gb1.brightbox.com..
Logging to /var/log/cloud-init-output.log on remote host
Running apt-get update
Installing package: curl
Installing package: cpu-checker
Installing package: bridge-utils
Installing package: rsyslog-gnutls
Installing package: cloud-utils
Installing package: cloud-image-utils
Fetching tools: curl -sSfw 'tools from %{url_effective} downloaded: HTTP %{http_code}; time %{time_total}s; size %{size_download} bytes; speed %{speed_download} bytes/s ' --noproxy "*" --insecure -o $bin/tools.tar.gz <[https://srv-z0iwb.gb1.brightbox.com:17070/tools/1.22.6-trusty-amd64]>
Starting Juju machine agent (jujud-machine-1)
created machine 1

Juju bootstrapping complete.

Juju GUI will shortly be available at:

https://cip-h9v3l.gb1.brightbox.com/

The username is "admin" and the password, taken from
~/.juju/environments/manual.jenv on cip-h9v3l.gb1.brightbox.com is:

password: 52029095a7947f349f392fd34455ff70

Add additional service machines from the management server by creating
them with the Brightbox CLI or the management GUI and then add them into
the cluster by running:

juju add-machine srv-xxxxx

Point a browser at the url given and login with the username and password shown. You’re then ready to deploy a charm!

Deploy a charm

Once you have the GUI working, you can deploy ‘charms’ by dragging them from the search bar on the left to the main canvas.

1_juju_start

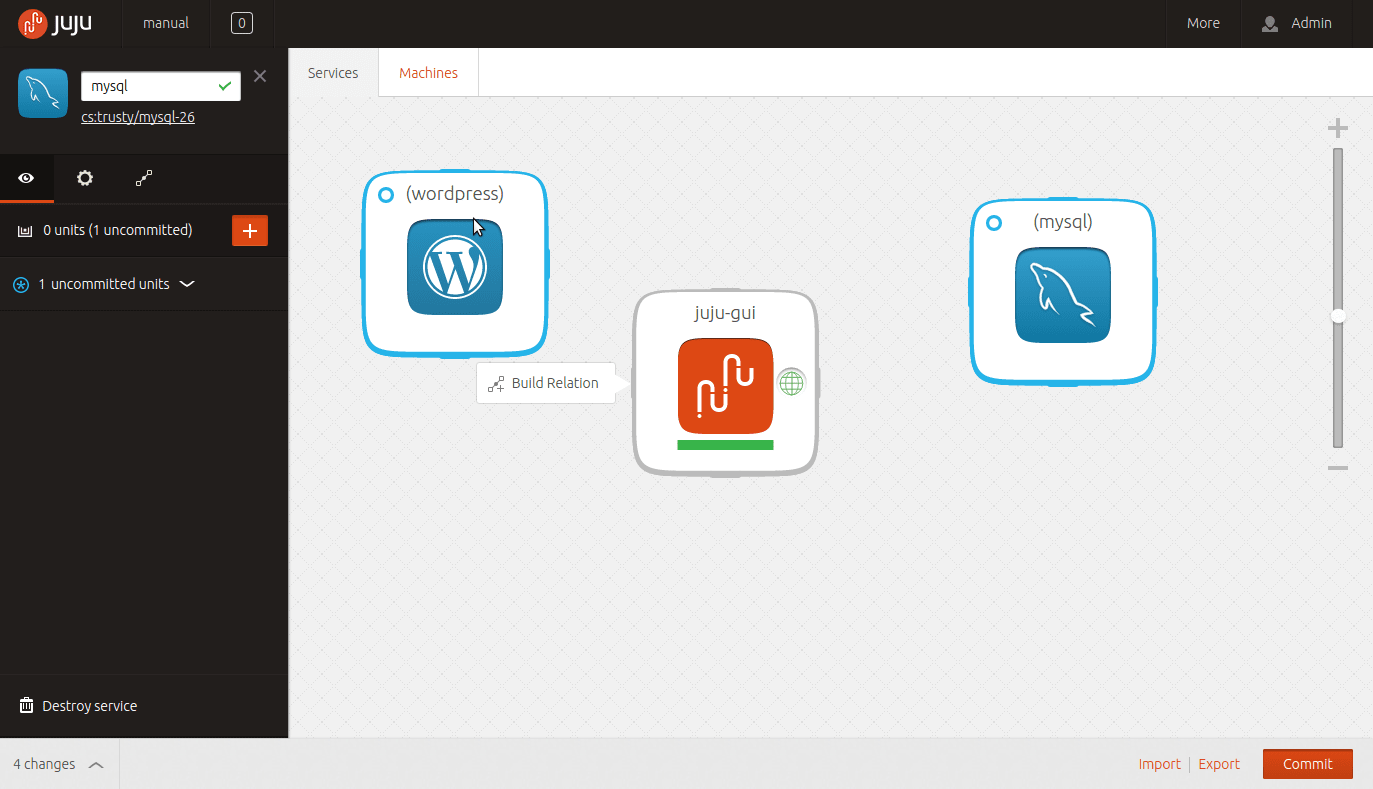

Let’s run through a simple WordPress/MySQL combination to get the idea. First find the wordpress and mysql charms using the search tool on the left and drag them to the canvas.

2_juju_uncommitted_charms

Click on the wordpress icon to reveal the build relation menu

3_juju_build_relation

drag across to the wordpress icon to create a relationship.

4_juju_after_build_relation

Next click on the machines tab and for each ‘new unit’ on the left hand side select a machine and container that unit should be deployed to – in this case machine #1.

5_juju_manual_place_service

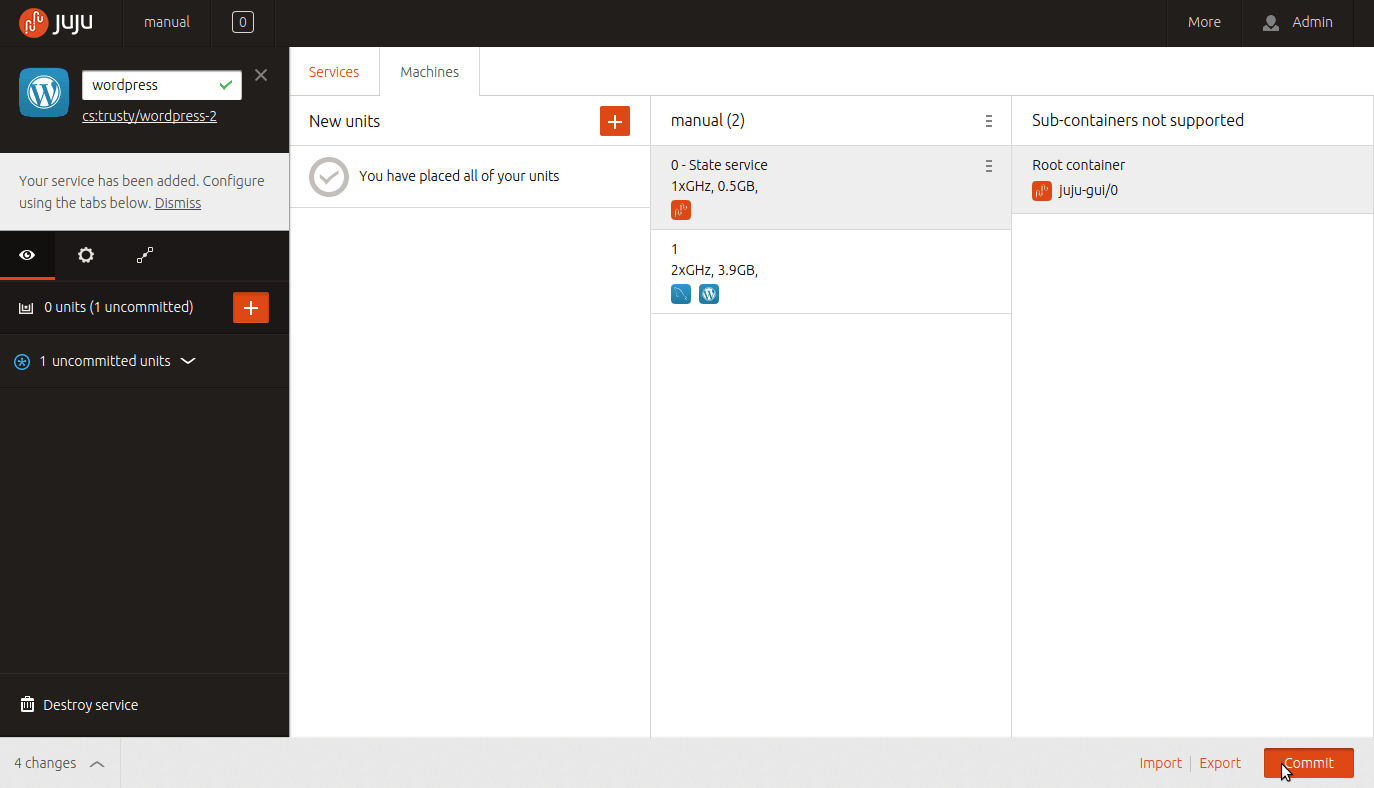

once you’ve placed all the units on machines, hit the Commit button

6_juju_ready_to_commit

Go back to the canvas screen and wait for the icon indicators to go green to show they have installed and configured. You’re then ready to use WordPress.
