1. Overview

This tutorial will guide you through installing Kubeflow and running you first model. Kubeflow will be deployed on top of microk8s, a zero-configuration Kubernetes.

Here is the tutorial outline:

  1. Create a VM
  2. SSH into the VM
  3. Install MicroK8s
  4. Install Kubeflow
  5. Do some work!

What you’ll learn

  • How to create an ephemeral VM, either on your desktop or in a public cloud
  • How to create a Kubernetes cluster in that VM
  • How to install Kubeflow using the Kubeflow native kfctl tool
  • How to create a Jupyter Notebook server on your Kubeflow cluster

What you’ll need

  • A linux terminal. This could be done locally.
  • [optional] For a VM locally, Multipass
  • [optional] For a VM on GCP, GCP account credentials and utilities
  • [optional] For a VM on AWS, AWS account credentials and utilities

How will you use this tutorial?

What is your current level of experience?


2. About the tools

This tutorial makes use of several technologies, some of which may be unfamiliar.

Kubeflow

Kubeflow is an open source project created by Google that is dedicated to providing an easy to use and customisable machine learning toolkit. You can easily compose your machine learning stack from many Kubeflow-enabled components. There are components for training models, serving models, creating workflows (pipelines), and a host of other supporting functionality.

Examples of machine learning frameworks enabled by Kubeflow are TensorFlow, PyTorch, Chainer, MXNet, XGBoost, and MPI.

MicroK8s

MicroK8s is zero-ops Kubernetes on just about any Linux box. It is packaged as a snap and installs in seconds, making it perfect for development or small scale production clusters.

MicroK8s can be installed on just about any Linux distribution. This could be a desktop, a server, an edge or IoT device, or a virtual machine.

Multipass

A mini-cloud on your Mac or Windows workstation. Multipass provides a command line interface to launch and manage instances of Ubuntu as virtual machines. Downloading the cloud images takes seconds, and within minutes a VM can be up and running.

We use Multipass to ensure consistency for readers who may be accessing the tutorial from many different environments and operating systems.


3. Create your VM locally

Using a Cloud VM If your local system doesn’t meet the system requirements (outlined in this section) then create a VM somewhere else. There are instructions at the end of this tutorial for creating a VM in a public cloud; look for steps titled “Optional Cloud VM”. For the Cloud VM option, fast forward to those steps, and then come back to the installing MicroK8s step.

For a local VM based deployment: - Download and install Multipass

Kubeflow can be resource intensive. The recommended minimum configuration is:

  • Kubernetes version 1.11 or later.
  • A VM with a minimum of:
    • 4 CPU
    • 50 GB storage
    • 12 GB memory

Given the possible number of containers involved in your machine learning stack, consider more storage - 100GB is strongly recommended.

multipass launch --name kubeflow --cpus 4 --mem 12GB --disk 50GB
multipass shell kubeflow

4. Install MicroK8s

MicroK8s is the fast and easy way to create a Kubernetes cluster. For this tutorial, we’ll create a single node Kubernetes cluster, which means installing MicroK8s into the VM you’ve created.

The steps below will install MicroK8s, turn on a few services (DNS, Storage, Dashboard), and ensure you can use kubectl.

sudo snap install microk8s --classic
microk8s.status --wait-ready
microk8s.enable dns storage dashboard
sudo snap alias microk8s.kubectl kubectl
microk8s.kubectl config view --raw > $HOME/.kube/config

5. Install Kubeflow using kfctl

Now that you have a Kubernetes cluster up and running, you will deploy Kubeflow. You’ll follow these steps:

  1. Install kfctl
  2. Install Kubeflow
  3. Check the install status
  4. Access the Kubeflow Dashboard
  5. Access Jupyter

1. Install kfctl

kfctl is a binary developed by the Kubeflow community that can be used to setup the standard set of Kubeflow components. The instructions below will download the binary as a compressed file and expand it into the current directory. Finally, it’ll add kfctl to the PATH.

export OPSYS=linux
curl -s https://api.github.com/repos/kubeflow/kubeflow/releases/latest | grep browser_download | grep $OPSYS | cut -d '"' -f 4 | xargs curl -O -L &&  tar -zvxf kfctl_*_${OPSYS}.tar.gz
export PATH=$PATH:$PWD

2. Install Kubeflow

Now that you have the kfctl binary installed, you can install Kubeflow using the standard set of components. The script below will create a directory, “kf-poc”, which will store all the kubernetes kustomize yaml files. These files are then applied to the MicroK8s cluster.

export KFAPP="kf-poc"
export VERSION=`curl -s https://api.github.com/repos/kubeflow/kubeflow/releases/latest |    grep tag_name | head -1 |    cut -d '"' -f 4`
export CONFIG="https://raw.githubusercontent.com/kubeflow/kubeflow/${VERSION}/bootstrap/config/kfctl_k8s_istio.yaml"
kfctl init ${KFAPP} --config=${CONFIG} -V
cd ${KFAPP}
kfctl generate all -V
kfctl apply all -V

3. Check the install status

To see the install status of all the Kubeflow components, you can run this command:

kubectl -n kubeflow get po

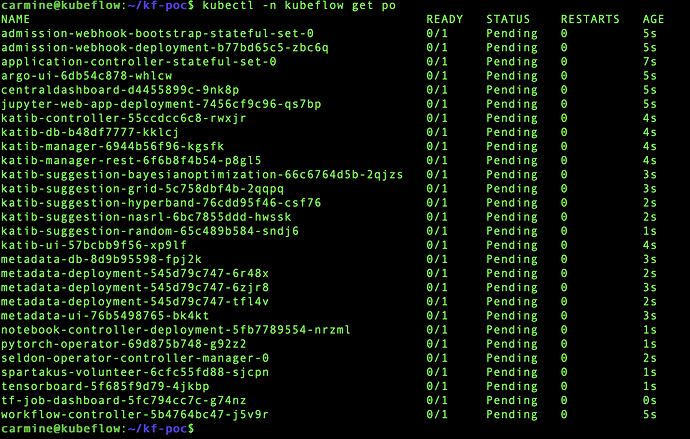

You’ll see something like this as the output

alt_text

With a fast internet connection, like the kind a public cloud would provide, it can take about 8 minutes to download and run all of the containers. Consider using the the following command to watch the install status. Once all pods have a Running status you can exit the watch command.

watch -c -n 10 kubectl -n kubeflow get po

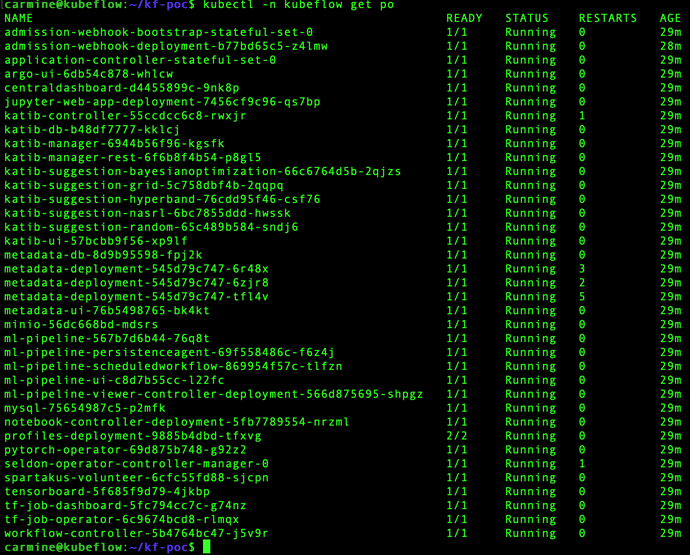

With all pods running, you should see something like this:

alt_text

4. Access the Kubeflow Dashboard

Since there isn’t a configured load balancer in this setup, you’ll need to use the node port. The default nodeport should be 31380, but to confirm, run the following command - it will highlight the http port to use. You will use this in conjunction with the IP address of the VM:

echo `kubectl get svc -n istio-system istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="http2")].nodePort}'`

alt_text

5. Access Jupyter

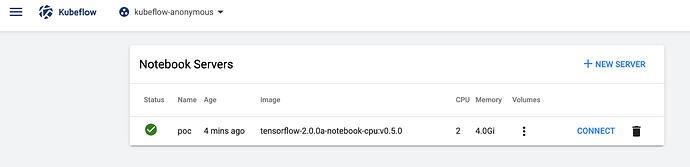

One of the first things you may want to do is to create a Jupyter server. This allows you to create new notebooks or import existing notebooks and run them in Kubeflow. By clicking on the menu icon in the upper left of the home screen, you can select Notebook Servers, which will show this screen:

alt_text

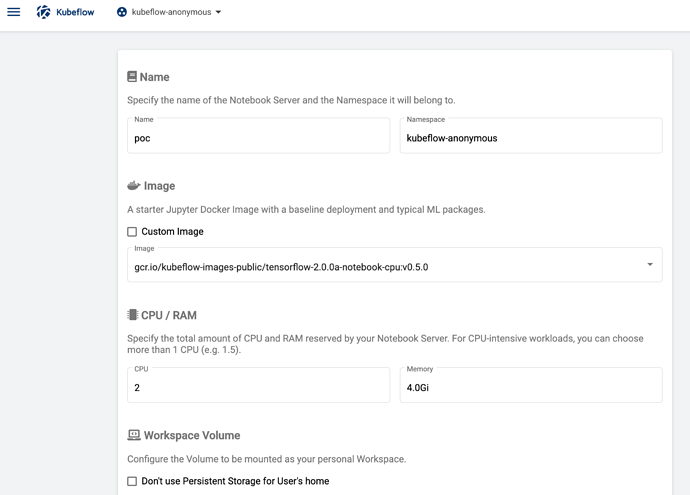

Once you select + NEW SERVER, you’ll be presented with this screen:

alt_text

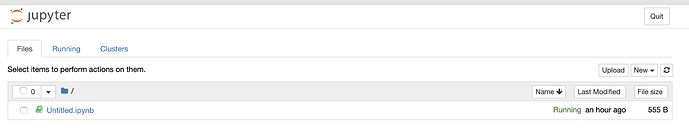

After completing the form and selecting the version of TensorFlow you’d like, you’ll have access to a Jupyter server, which allows you to create or import notebooks:

alt_text


6. Next Steps

The goal of this tutorial was to get you up and running quickly using Kubeflow. In this tutorial, you have:

  1. Created a VM
  2. Installed MicroK8s and Kubeflow
  3. Verified the installation by looking at Kubeflow container status.
  4. Created a Jupyter Notebook server
  5. Ideally, you created a notebook and started doing some work.

Recommended reading


7. Appendix 1: Cloud VM Option - Google: Create your VM on GCP

Skip to the next step if you’re not interested in using GCP, and have already created a VM locally or plan to use AWS.

For a GCP-based deployment: - Google Cloud SDK installed - General knowledge of how to create and use VMs on GCP

This path will create an preemptible VM, which means that the VM could be reclaimed by GCP at any time. The benefit of a preemptible VM is that it costs a fraction of a normal VM. If you prefer to use a normal VM and not risk it disappearing, then change the PREEMPTIBLE variable below to be just "", for example export PREEMPTIBLE=""

Create a project

If you don’t already have a project that you can use to create the VM, visit this page. In the next step we assume the project is name is kubeflow-spike-01.

You can create a project through the command line as well:

gcloud projects create kubeflow-spike-01

Enabling Billing for new project Billing should be enabled for the new project you created. You can do that using the Billing option from Google Console.

Allow Networking

This command will open up the networking so that you can access your cluster. Be careful with this command, it opens up networking to anyone on the internet. Specifically, once you create the VM in the next step, the ports below will be generally accessible.

gcloud compute --project=${GCP_PROJECT} firewall-rules create k8s-ingress --description=Expose\ kubernetes\ nodeport\ range --direction=INGRESS --priority=1000 --network=default --action=ALLOW --rules=tcp:8001,tcp:8080,tcp:30000-32767 --source-ranges=0.0.0.0/0 --target-tags=k8s-nodeport

Create a VM

export GCP_INSTANCE_NAME="kubeflow"
export GCP_PROJECT="kubeflow-spike-01"
export GCP_ZONE="us-west1-c"
export PREEMPTIBLE="--preemptible"
gcloud compute --project=${GCP_PROJECT} instances create ${GCP_INSTANCE_NAME} --zone=${GCP_ZONE} --machine-type=n1-standard-8 --subnet=default --network-tier=PREMIUM --no-restart-on-failure --maintenance-policy=TERMINATE ${PREEMPTIBLE} --scopes=https://www.googleapis.com/auth/devstorage.read_only,https://www.googleapis.com/auth/logging.write,https://www.googleapis.com/auth/monitoring.write,https://www.googleapis.com/auth/servicecontrol,https://www.googleapis.com/auth/service.management.readonly,https://www.googleapis.com/auth/trace.append --tags=k8s-nodeport,http-server,https-server --image=ubuntu-1804-bionic-v20190813a --image-project=ubuntu-os-cloud --boot-disk-size=200GB --no-boot-disk-auto-delete --boot-disk-type=pd-standard --boot-disk-device-name=kubeflow

List the VM

This command can be used to get details of the VM you just created, including IP address and status:

gcloud compute instances --project=${GCP_PROJECT} list --filter="--zone:(${GCP_ZONE})" --filter="name=(${GCP_INSTANCE_NAME})"

SSH into the VM

gcloud compute --project ${GCP_PROJECT} ssh --zone ${GCP_ZONE} ${GCP_INSTANCE_NAME}

(Later) Delete a VM

Once you are done with this tutorial, you’ll want to cleanup (delete) this VM. The following command can be used to delete this VM resource:

gcloud compute instances --project=${GCP_PROJECT} delete --quiet --zone=${GCP_ZONE} ${GCP_INSTANCE_NAME}
gcloud compute disks --project=${GCP_PROJECT} delete --quiet --zone=${GCP_ZONE} ${GCP_INSTANCE_NAME}
